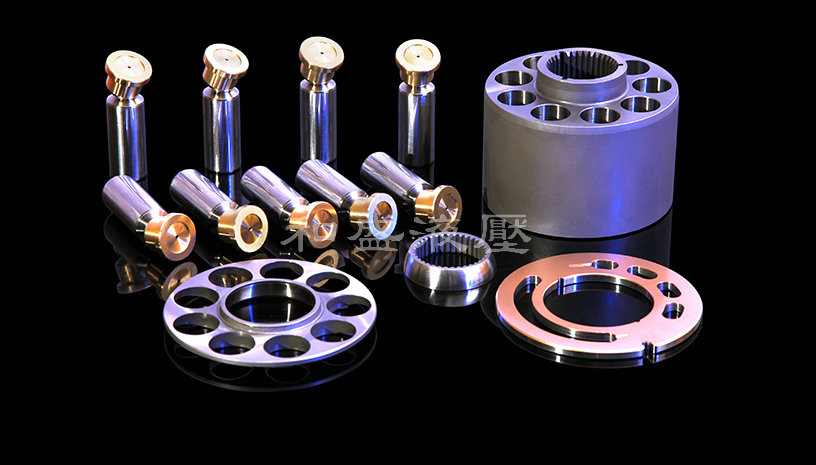

| 卡特CAT320系列常用配件 | |||
| 產品件號 | 部件名稱 | 數量/臺 | 備注 |
| PARTNO | DESCRIPTION | QUANTITY | REMARK |
| 1 | 柱塞滑靴(PISTON SHOE) | 9 | |
| 2 | 空芯柱塞滑靴(PISTON SHOE) | 9 | |
| 3 | 缸體(CYLINDER BLOCK ) | 1 | |
| 4 | 配油盤(VALVE PLATE) R | 1 | |
| 5 | 配油盤(VALVE PLATE) L | 1 | |
| 6 | 回程盤(RETAINER PLATE) | 1 | |
| 7 | 球鉸(BALL GUIDE) | 1 | |
| 8 | 止推板(SHOE PLATE) | 1 | |
| 9 | 傳動軸(DRIVE SHAFT) | 1 | (平鍵) |
| 10 | 傳動軸(DRIVE SHAFT) | 1 | |
| 11 | 傳動軸(DRIVE SHAFT) | 1 | (T28×T32) |
| 12 | 碟形彈簧(DISC SPRING) | 4 | |
| 13 | 球鉸 彈簧(BALL GUIDE) | 20 | |
| 14 | 軸瓦(METAL) | 2 | |
| 15 | 調整墊片(SPACER) | 2 | |
| 16 | 連接套 | 1 | |
| 17 | 壓板(RETAINER) | 2 | |
| 18 | 壓板座(RETAINER) | 2 | |
| 19 | 大軸承(BIG BEARING) | 1 | |
| 20 | 小軸承(SMALL BEARING) | 1 | |
| 21 | 骨架油封(SEAL KIT) | 1 | |
